Linear Diaphragm Air Pump--TM series
Wide variety of range from 30 to 200L/min
- Very low power consumption
Higher energy efficient is achieved by adopting strong magnet and low-loss
of magnetic power.
- Longer-life diaphragm
Lower load to diaphragms by efficient pumping with compact compression
room.
- Quiet operation sound
Achieve much lower operation noise by adopting new housing. Also decrease
noise variation.
- Easy maintenance
Repair parts can be easily replaced, and cleaning and replacement of the
air filter is also easy by adopting quick release cover.
- Automatic safety stop function (except TM-30N and 40N)
If a diaphragm or valve is damaged in operation, this function works and
stops running to prevent further damage of a blower. Also, after replacing
parts, you can resume the blower easily with simple reset of the function.
- Compact and lightweight design with aluminum die-casting body
- Aeration for septic tank and secondary treatment of wastewater
- Aeration for fish farm
- Agitation in plating tanks or water tanks
- Air curtain
| Diaphragm blower |
Model |
 |
TM30N
TM40N
TM60N
TM80N
TM100N
|
  |
TM120N
TM150N
TM200N
|
| Item |
Model |
30N |
40N |
60N |
80N |
100N |
120N |
150N |
200N |
| Voltage |
V |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
| Frequency |
Hz |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
| Rated pressure |
kPa |
12 |
12 |
15 |
15 |
18 |
18 |
18 |
18 |
| Rated Flow |
L/min |
30 |
40 |
60 |
80 |
100 |
120 |
150 |
200 |
| Power consumption |
W |
21 |
35 |
47 |
54 |
84 |
91/98 |
110/120 |
160/170 |
| Ambient temperature |
ºC |
-10 to 40 (humidity: under 90%) |
| Outlet port dia. |
A |
13A |
13A |
13A |
13A |
13A |
20A |
20A |
20A |
| Outside outlet dia. |
mm |
18 |
18 |
18 |
18 |
18 |
26 |
26 |
26 |
| Approx. weight |
kg |
4.5 |
4.5 |
5.0 |
5.0 |
5.0 |
8.5 |
9.0 |
9.0 |

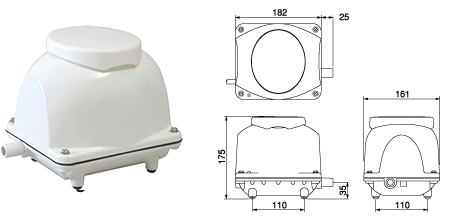

LWH
(excluding outlet port) |
mm |
182x161x175 |
300x180x198 |
Note: Voltage can be changed upon your request.
|
