Tohin Rotary Vane Blower

TOHIN is the largest manufacturer of rotary vane blower in Japan having an ample experience and proven results with a long history of more than 50 years.

A large variety of TOHIN blowers ranging from small to large types manufactured under strict quality management and incessant R&D can meet the requirements of various applications and your full expectations.

Superior functionality and durability, in particular, quiet operating sound are the fruit of our high technology and experience.

TOHIN Rotary Vane Blowers have been used for a long time for aeration of on-site wastewater treatment, not only for domestic but also for industrial or community.

The established production of more than 4 million units is a good proof of reliability.

Rotary vane blower	Model	Flow range (m3/min)
	SD-120s SD-120 SD-150s SD-200s	0.124 to 0.205
	FD-250s FD-300	0.205 to 0.310
	HC-251s HC-30s HC-301s HC-301H HC-40s HC-401s HC-50s HC-501s HC-60s HC-80s HC-100s	0.310 to 4.32

• Compact, powerful air flowrate and yet silent operating sound
• Very little vibration and easy installation
• Strong against pressure change in a tank
• Smooth outlet by air chamber unit
• Heavy duty to keep high performance
• Superior cost performance

• Aeration for septic tank and secondary treatment of wastewater
• Spraying for heavy oil and kerosene oil burners
• Aeration for fish farm
• Agitation in plating tanks or water tanks
• Air curtain


• Compact, powerful air flowrate and yet silent operating sound
• Very little vibration and easy installation
• Strong against pressure change in a tank
• Smooth outlet by air chamber unit
• Heavy duty to keep high performance
• Superior cost performance

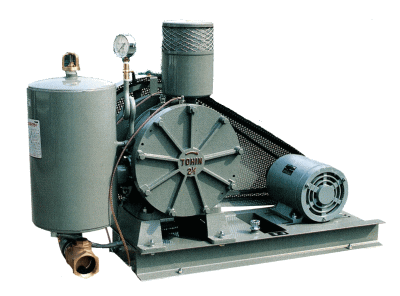

Tohin rotary vane blower mainly consists of components such as Blower body (cylinder), Motor, Air chamber, Air filter, Base (with oil tank), and Oil dropping nozzle. This simple structure contributes very long life and trouble-free operation.

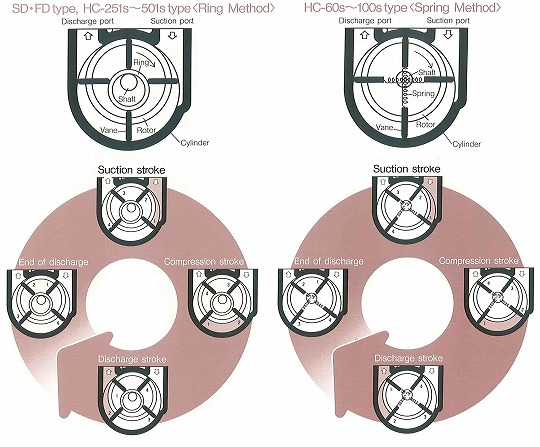

The rotor, which has four pieces of vane moving in-and-out repeatedly, eccentrically rotates in the cylinder to intake, compress, and discharge air. This is the basic mechanism of the blower.

While running the machine, lubricating oil keeps circulating and continuously supplied to the cylinder through the oil dropping joint. The oil works not only to decrease operation sound and friction heat, but also to keep high airtightness in the cylinder.
